Product Name:1-port RS485 to Ethernet Converters

  • Model:USR-TCP232-304
RS485 to Ethernet converters
basic function of RS485 to Ethernet converters: wired network

Basic Function

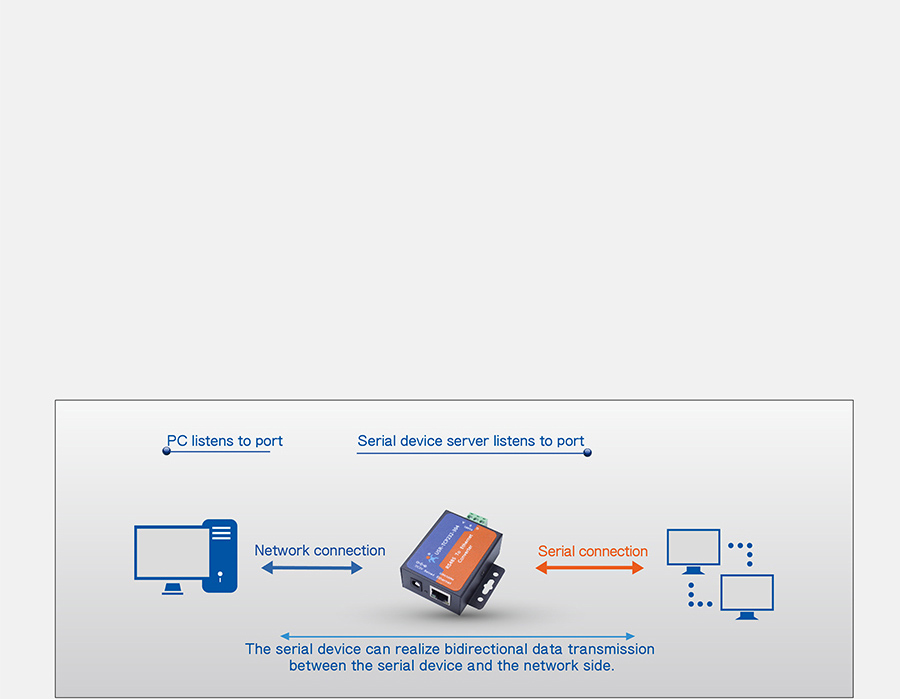

basic function of RS485 to Ethernet converters: which can transmit data transparently between TCP/IP and RS485
function of RS485 serial device server: Function Diagram

Function Diagram

work mode of rs485 to ethernet converters: tcp server mode

Work mode

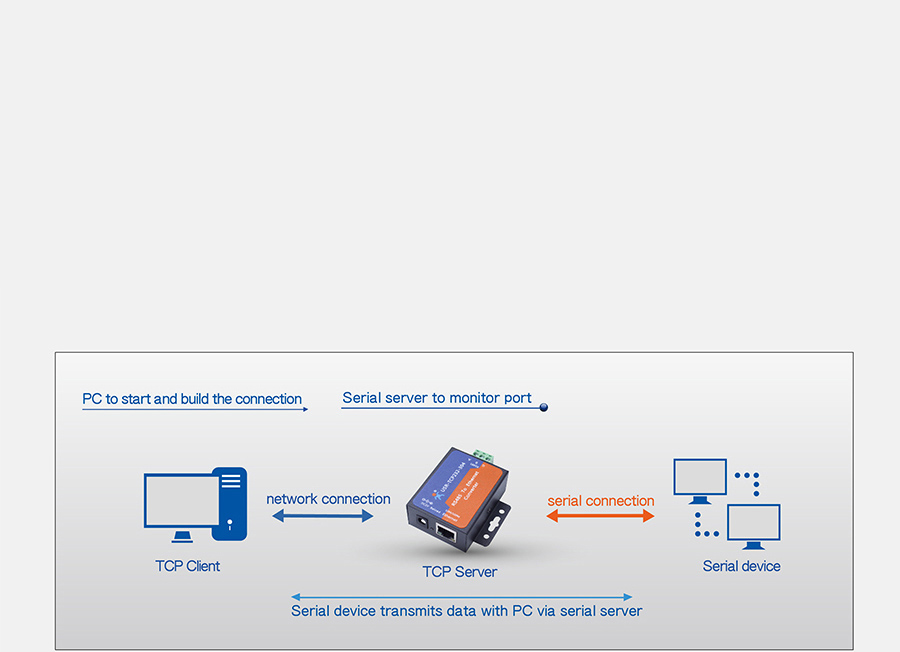

TCP Server

RS485 to Ethernet converters USR-TCP232-304 monitor the set port and wait for a TCP client connection.
Data from the serial device will transmit to all successfully-connected TCP clients via USR-TCP232-304.

work mode of rs485 to ethernet converters: tcp client mode

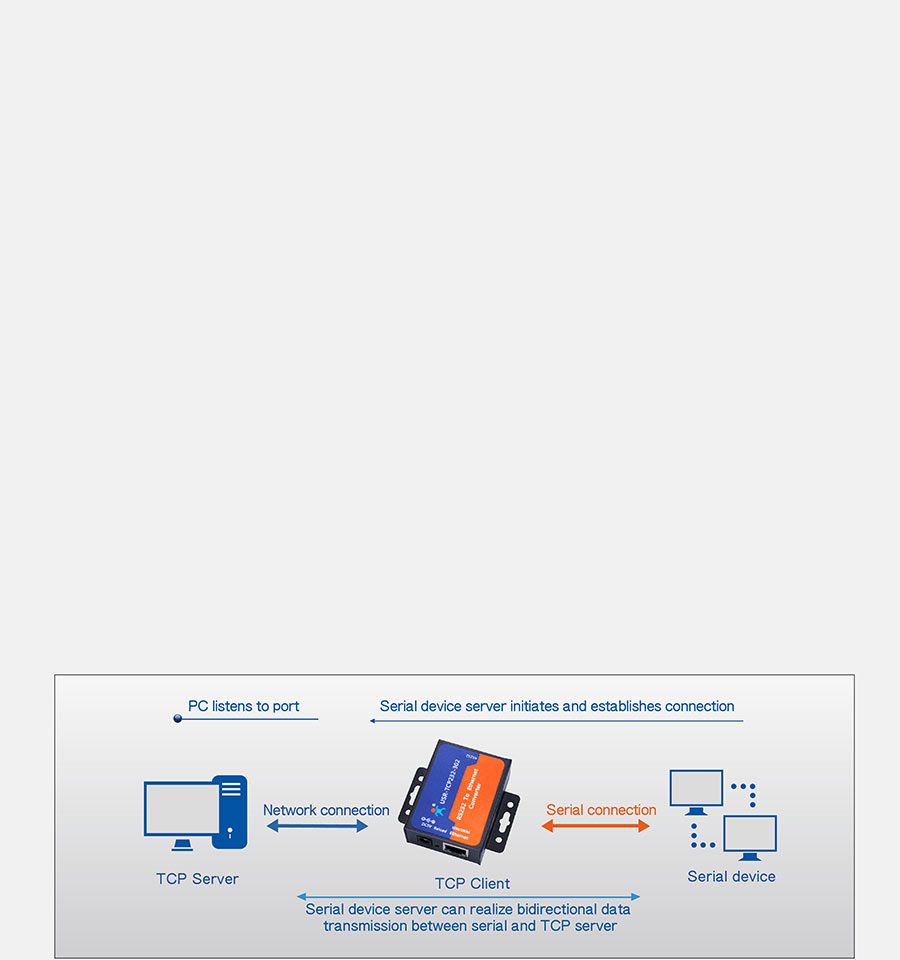

TCP client mode

RS485 to Ethernet converters USR-TCP232-304 initiate TCP connection to the destination IP address that
configured by the user and USR-TCP232-304 continuously try to reconnect if establishing TCP connection
unsuccessfully. If USR-TCP232-304 establishes TCP connection to TCP Server successfully, it can realize
bidirectional data transparent transmission between TCP Server and the serial device.

work mode of rs485 to ethernet converters: UDP mode

UDP mode

RS485 to Ethernet converters USR-TCP232-304 will transmit serial data from serial
device to target network device by UDP connection. USR-TCP232-304 will listen to port
and transmit all received data to serial device.

work mode of rs485 to ethernet converters: httpsD Client

httpsD Client

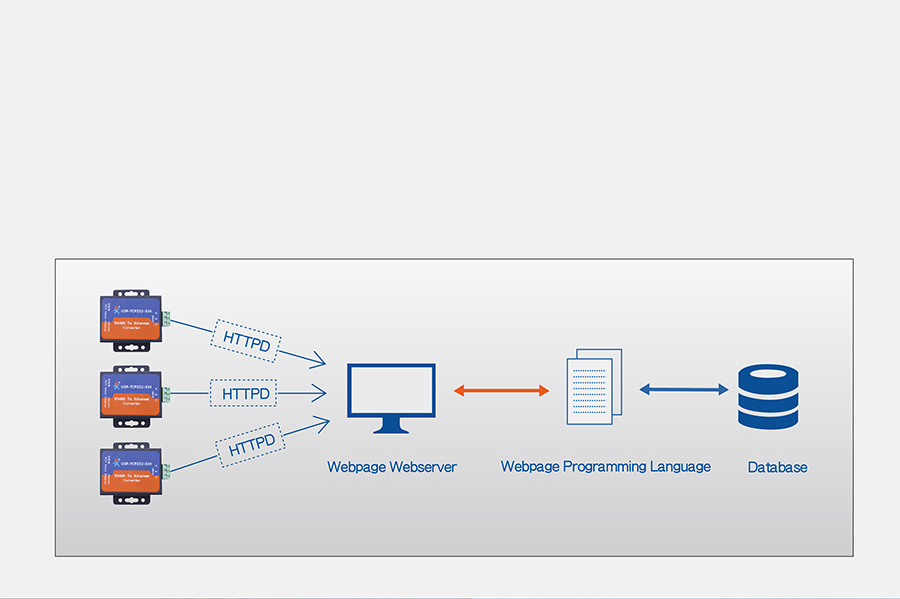

RS485 to Ethernet converters USR-TCP232-304 support https Client mode which can transmit serial data
to the https server in https format(GET/POST).

function of rs485 to ethernet converters:Virtual Com Software

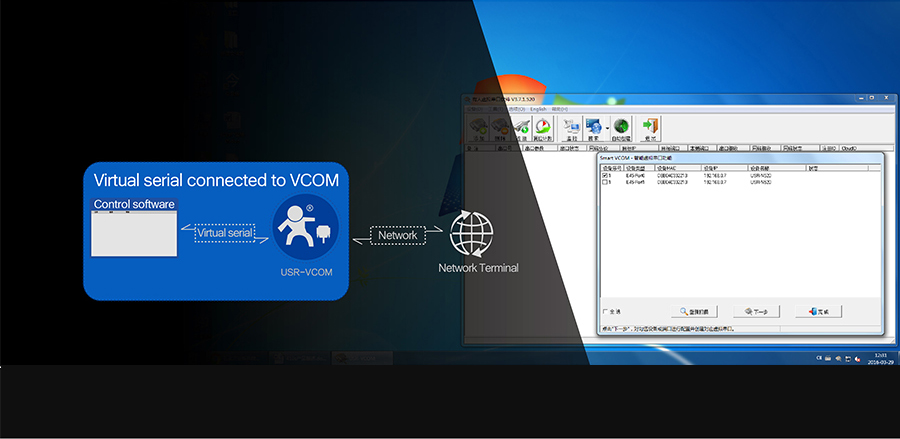

Virtual Com Software

Powerful Virtual Serial Software USR-VCOM

Powerful Virtual Serial Software USR-VCOM

Synchronous Baud Rate

Synchronous Baud Rate

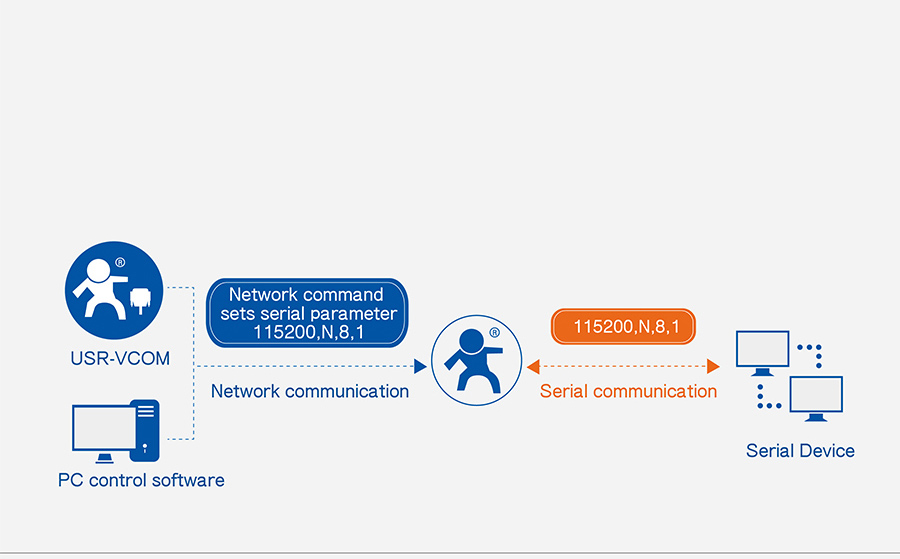

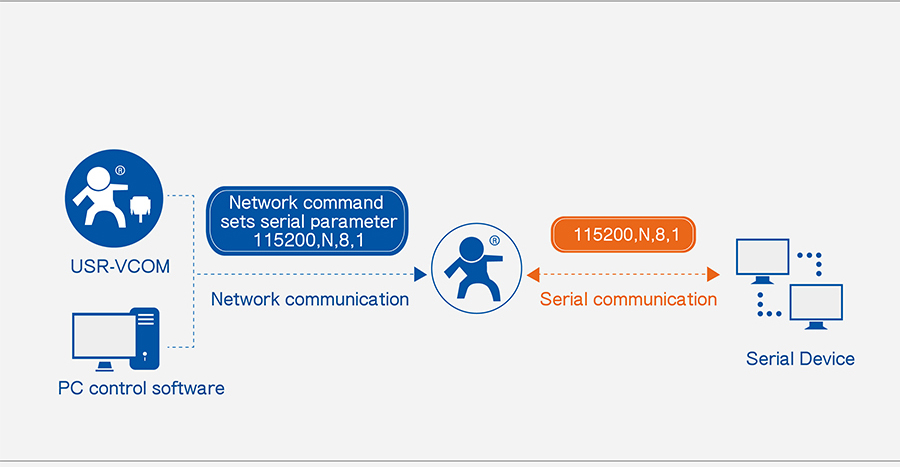

Dynamically change baud rate, data bit, check bit and stop bit of USR-TCP232-304 via network command.

Identity packet function of ethernet to rs485 converters

Identity packet function

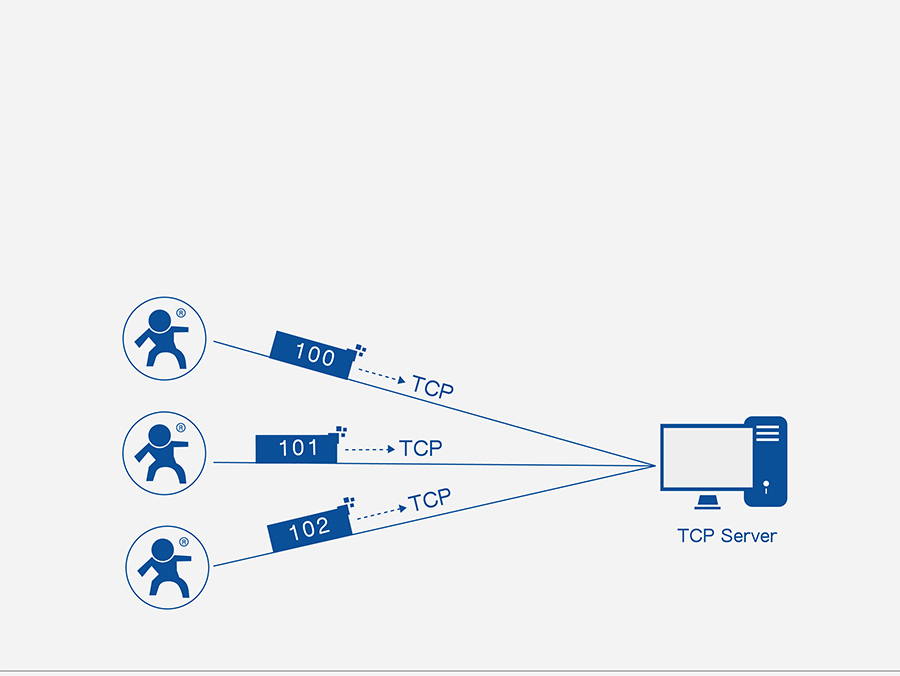

When RS485 to Ethernet converter USR-TCP232-304 works as TCP Client, it can send identity packet to
TCP server which can be identification. Identity packet can be IMEI code,
ICCID code and user editable identity packet.

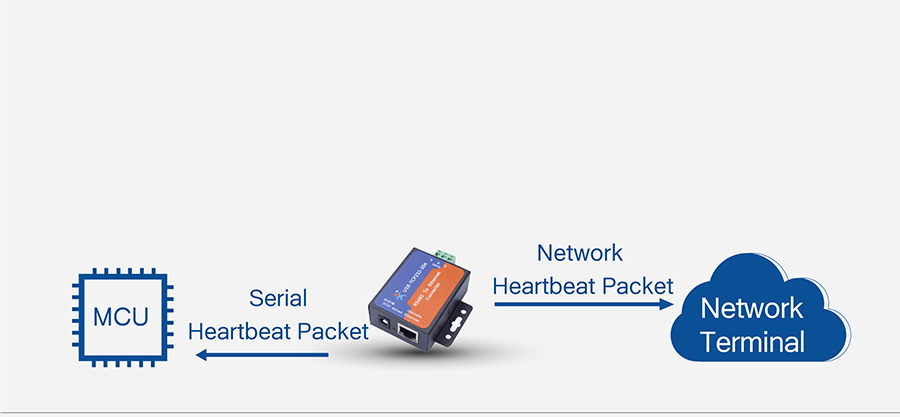

Serial & Network Heartbeat Packet

Serial & Network Heartbeat Packet

RS485 to Ethernet converters USR-TCP232-304 maintain the normal connection with the server by sending
heartbeat packet regularly.

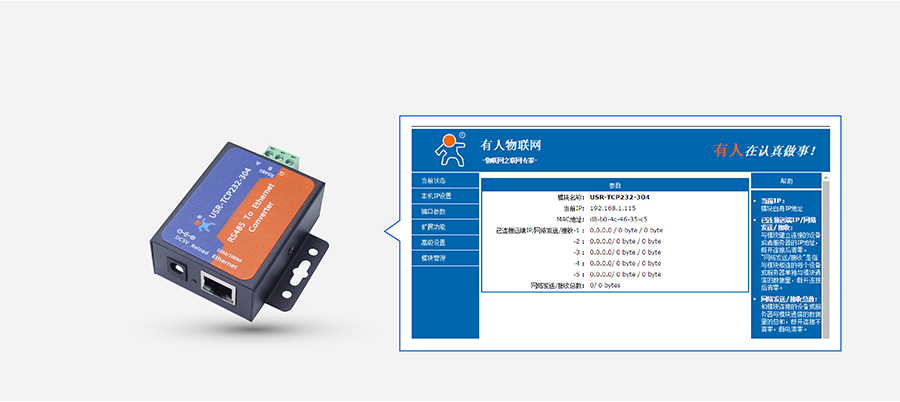

Hardware Dimensionssupport PUSR Cloud

application of ethernet to rs485 converters: Unattended Weighing

Application

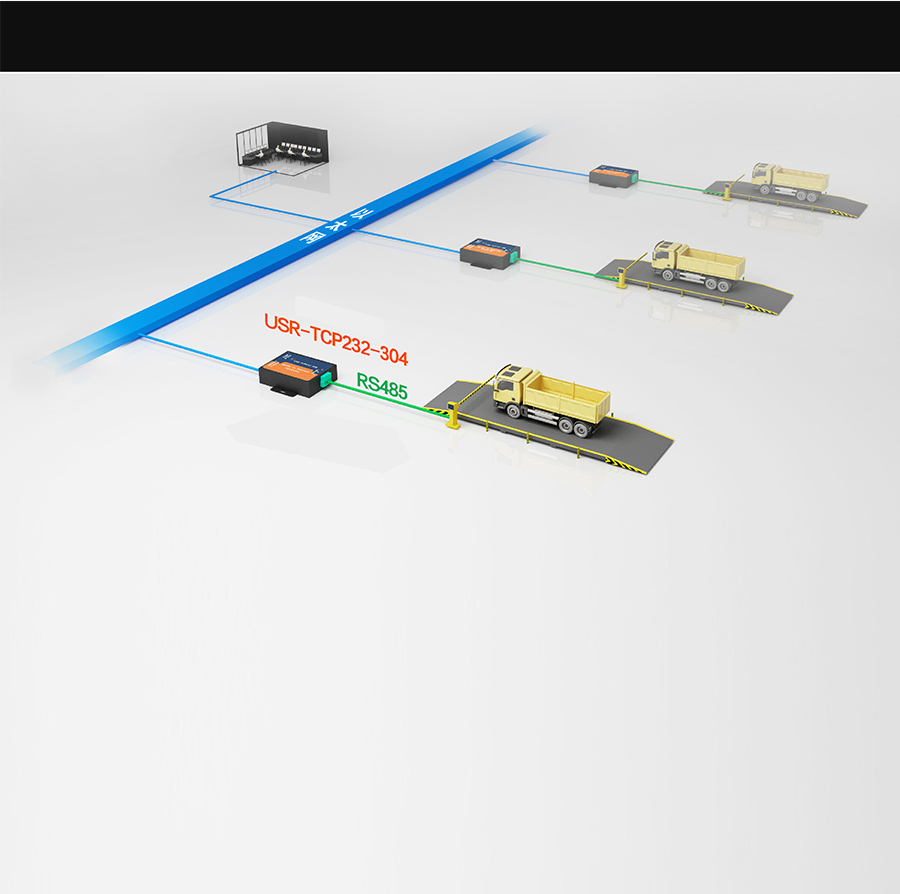

[ Unattended Weighing ]

Connect USR-TCP232-304 to barrier gate and it can realize remote control of
barrier gate by Ethernet in control center.

application of ethernet to rs485 converters: access control system
application of rs485 to tcp ip converters: Traffic lights management system

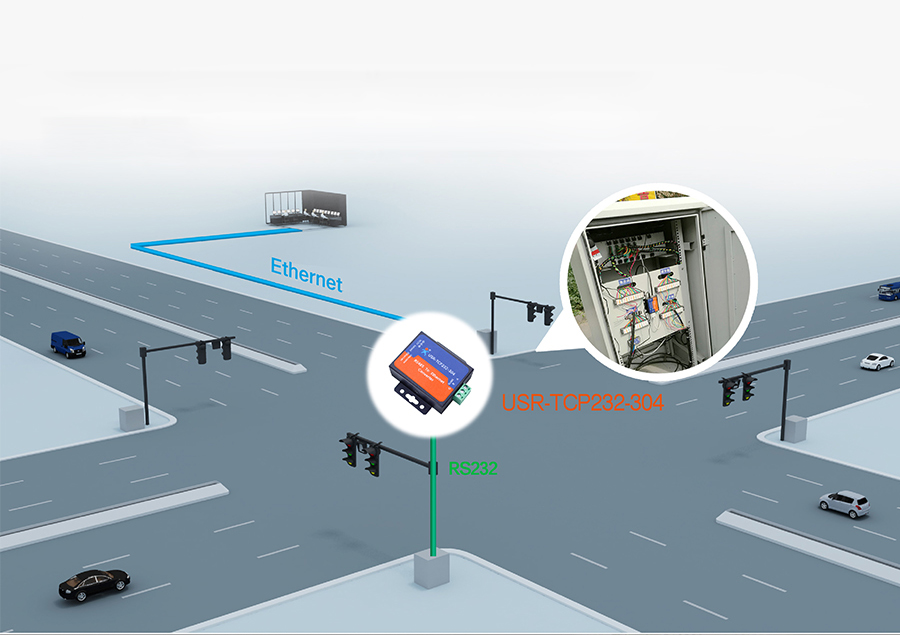

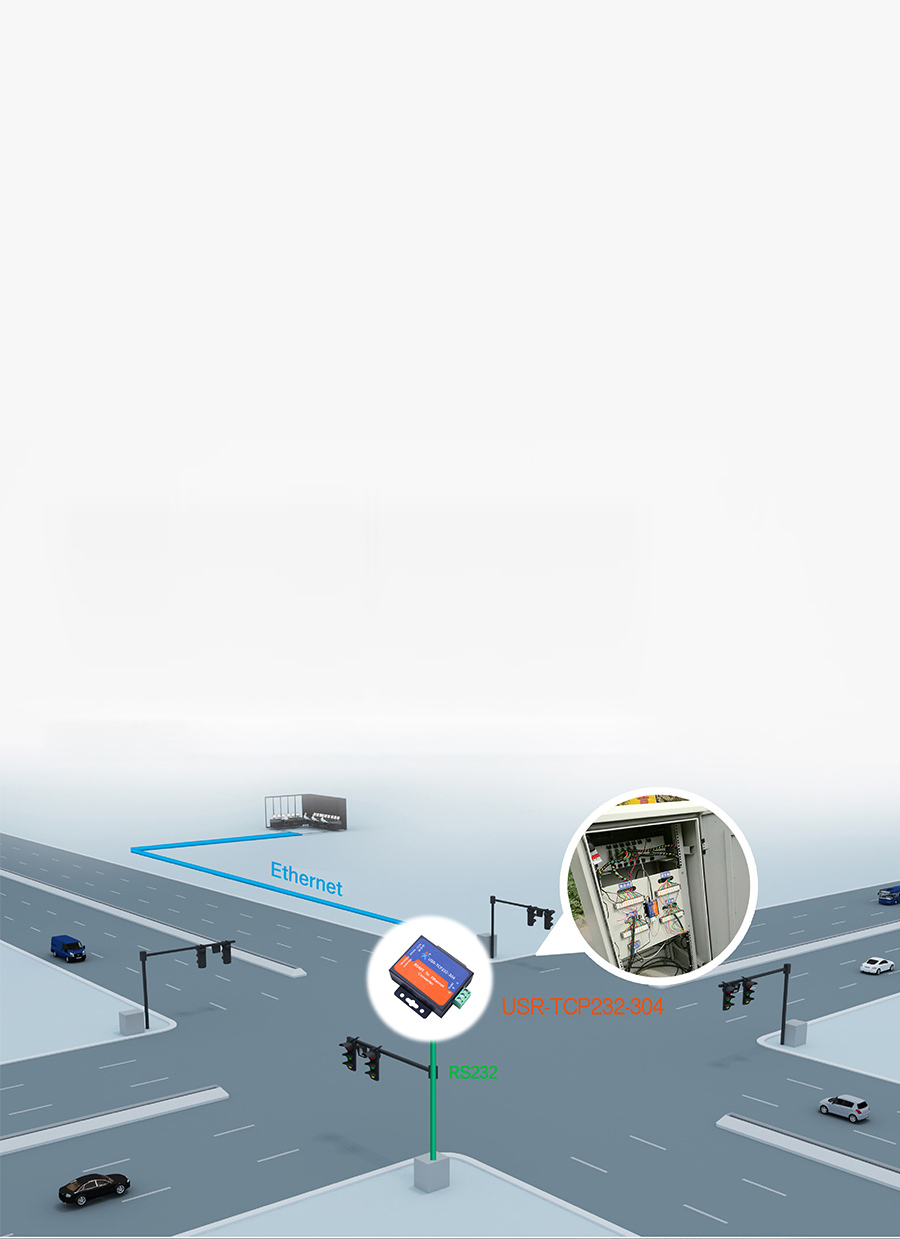

[ Traffic Lights Management System ]

Connect RS485 to Ethernet converter USR-TCP232-304 and it can realize traffic data acquisition and
processing by Ethernet in control center. It can also provide accurate quantitative basis for
traffic dispatch management and urban transport planning Can implement the optimum control for
transportation phenomena such as traffic jam, traffic accident, traffic capacity from a regional
or global perspective.

application of rs485 to tcp ip converters: Electric power
RS485 to Ethernet converters
basic function of RS485 to Ethernet converters, wired network

Basic Function

basic function of RS485 to Ethernet converters, wired network
function of RS485 to Ethernet converters: Function Diagram

Function Diagram

work mode of RS485 to Ethernet converters,tcp server mode

Work mode

work mode of RS485 to Ethernet converters,tcp server mode

TCP Server

RS485 to Ethernet converters monitor the set port and waits for a TCP client connection.
Data from the devices will transmit to all successfully-connected via RS485 to Ethernet converters.

work mode of RS485 to Ethernet converters,tcp client mode

TCP client mode

RS485 to Ethernet converters will initiate TCP connection to the destination IP address that configured by the user
and RS485 to Ethernet converters will continuously try to reconnect if establishing TCP connection unsuccessfully.
If the RS485 to Ethernet converters establishe TCP connection to TCP Server successfully, they can realize
bidirectional data transparent transmission between TCP Server and the serial device.

work mode of RS485 to Ethernet converters,UDP mode

UDP mode

RS485 to Ethernet converters will transmit serial data from serial device to target network device by UDP connection.
RS485 to Ethernet converters will listen to port and transmit all received data to serial device.

work mode of RS485 to Ethernet converters,httpsD Client

httpsD Client

Supports https Client mode which can transmit serial data to the https server in https format(GET/POST).

function of RS485 to Ethernet converters:Virtual Com Software

Virtual Com Software

Powerful Virtual Serial Software USR-VCOM

Powerful Virtual Serial Software USR-VCOM

Synchronous Baud Rate

Synchronous Baud Rate

Dynamically change baud rate, data bit, check bit and stop bit of serial device server via network command.

Identity packet function

Identity packet function

When 304 works as TCP Client, it can send identity packet to TCP server which can be identification.
Identity packet can be IMEI code, ICCID code and user editable identity packet.

Serial & Network Heartbeat Packet

Serial & Network Heartbeat Packet

RS485 to Ethernet converters maintain the normal connection with the server by sending heartbeat packet regularly.

Hardware Dimensionssupport PUSR Cloud

application of RS485 serial device server: Unattended Weighing

Application

[ Unattended Weighing ]

Connect RS485 to Ethernet converters USR-TCP232-304 to barrier gate and they can realize remote control of
barrier gate by Ethernet in control center.

application of RS485 to Ethernet converters: access control system
application of RS485 to Ethernet converters: Traffic lights management system

[ Traffic Lights Management System ]

Connect RS485 to Ethernet converters USR-TCP232-304, and they can realize traffic data acquisition and processing by Ethernet
in control center. RS485 to Ethernet converters can also provide accurate quantitative basis for traffic dispatch management and urban transport planning.
Can implement the optimum control for transportation phenomena such as traffic jam, traffic accident, traffic capacity
from a regional or global perspective.

application of RS485 to Ethernet converters: Electric power



System Information
ProcessorTI Cortex-M0
Ethernet
Port Number1
Interface StandardRJ45
Rate10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection
Protection2KV electromagnetism isolation, shell insulation blocking
Network ProtocolIP, TCP, UDP, DHCP, DNS, https, ARP, ICMP
BufferSend: 6K bytes, receive: 4K bytes
Serial Port
Port Number1
Interface StandardRS-485: 3 wire (A+, B-, GND)
Data Bits5, 6, 7, 8
Stop Bit1, 2
Check BitNone, Even, Odd, Space, Mark
Baud Rate600 bps ~ 230.4 Kbps
Flow ControlNull
BufferReceive: 800 bytes
Software
Virtual Serial(USR-VCOM)Windows 2000 or higher (32 bit/64 bit)

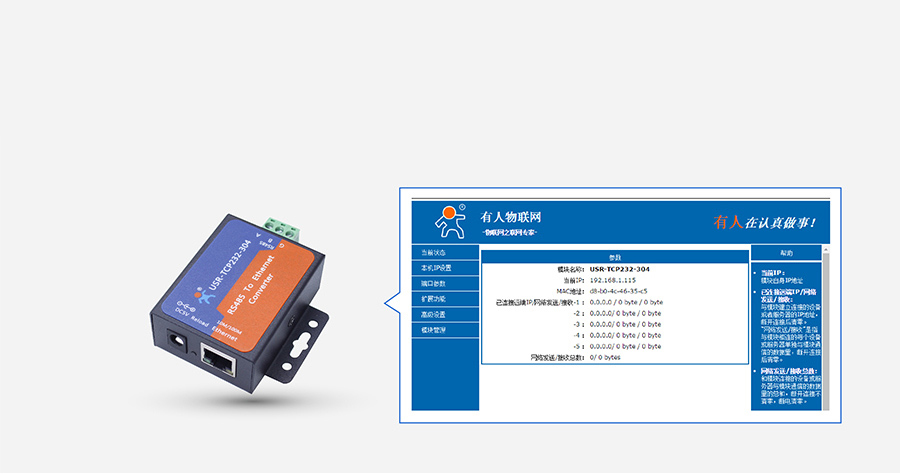

ConfigurationComputer set-up software, serial command, built-in webpage
Basic Parameter
Size71 x 60 x 25 mm
Operating Temp.-25 ~ 75°C
Storage Temp.-40 ~ 105°C, 5 ~ 95% RH
Input VoltageDC 4.75 ~ 7V
Working Current150mA @ 5V
Power<1W
More
Warranty2 years
Accessory5V1A power supply
CertificateCE/FCC/Rohs
